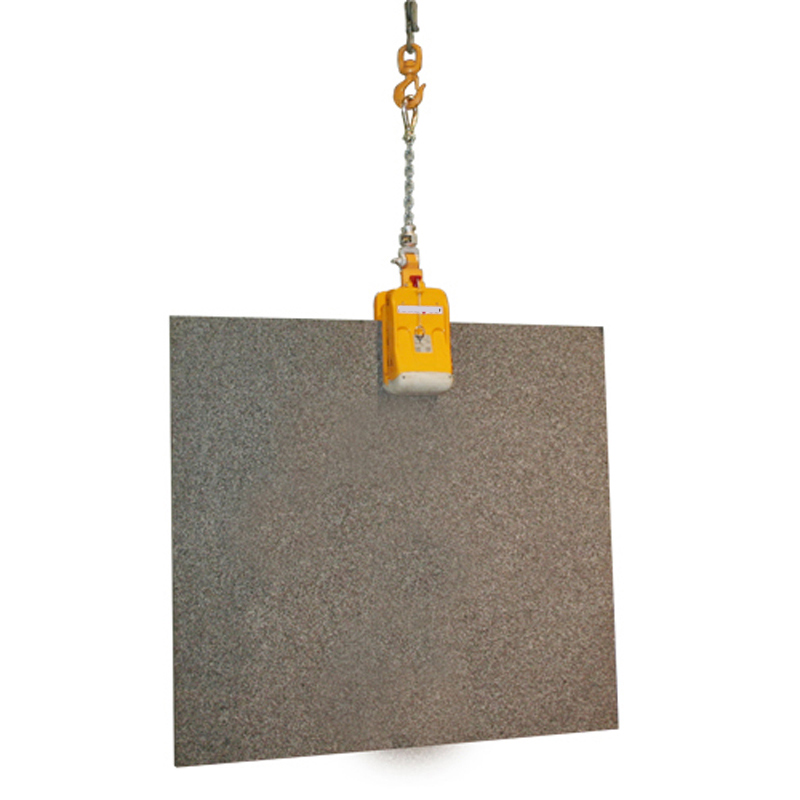

[accordion-item title=”General Information”]The Lifter is an accessory for lifting and moving slab-form loads. Â The Lifters incorporate a spring-loaded latch that automatically releases the lifter from the slab once the slab has been fully lowered to the ground. Â This makes the process of lifting and lowering of slabs a one-man operation.
[/accordion-item]

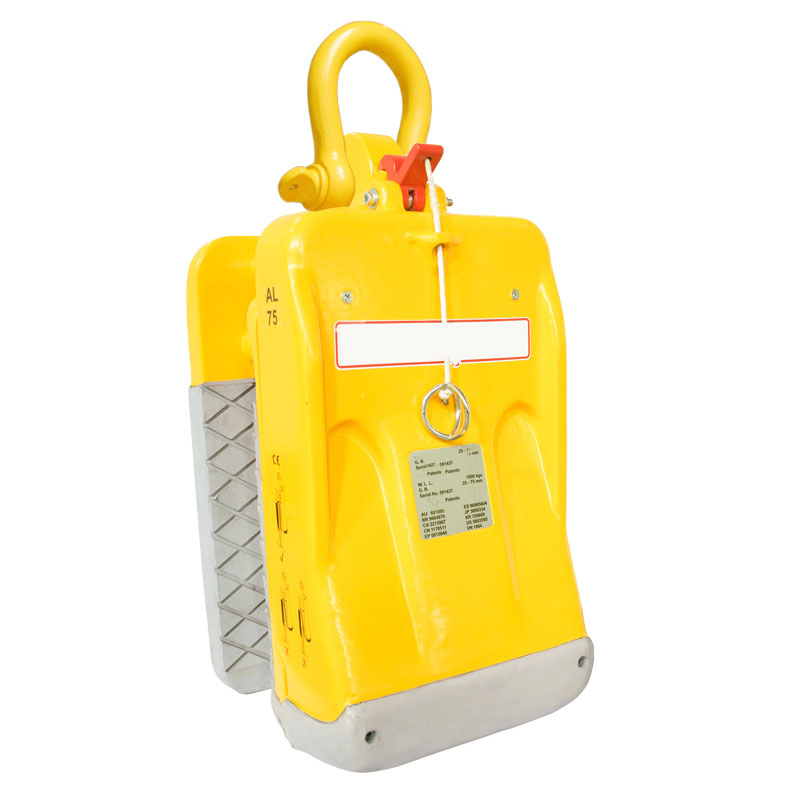

[accordion-item title=”Features”]Size: Being of a compact construction, the Lifter 75 allow for close packed stone slabs to be lifted out of racks and containers. Â Lower height slabs placed along side of taller slabs offer no problem, as is the case with scissor clamps.
Versatile: Ideal for construction work. Â Because the clamping mechanism is to the front of the slab, they allow panels to be placed close against walls.
Safety:Â Requires only a small movement of the slab to engage and grip the slab, which is generally well below the over balance angle thus eliminating the danger to the operator.
Secure:Â The clamps grip marble and granite slabs firmly. Â The Lifter 75 has a force multiplying factor of approximately 2.5 to 1.
[/accordion-item]
[accordion-item title=”Specifications”]
| Â Â Â Â Â Â Â Â Â Â Â Unit
Section |
 Metric (mm-kg)
|
 Imperial (inch-lbs)
|
| Grip Range | 30 – 75 | 0.4 – 2 |
| W.L.L | 1200 | 2646 |
| Net Weight | 25 | 55.1 |
| Gross Weight | 25.8 | 56.9 |
| Package Dimension | 420x220x250 | 16.5×8.7×9.8 |
[/accordion-item]
[accordion-item title=”Enquiry Form”]
If you would like a quote for this product, Please fill out and submit the form below.
